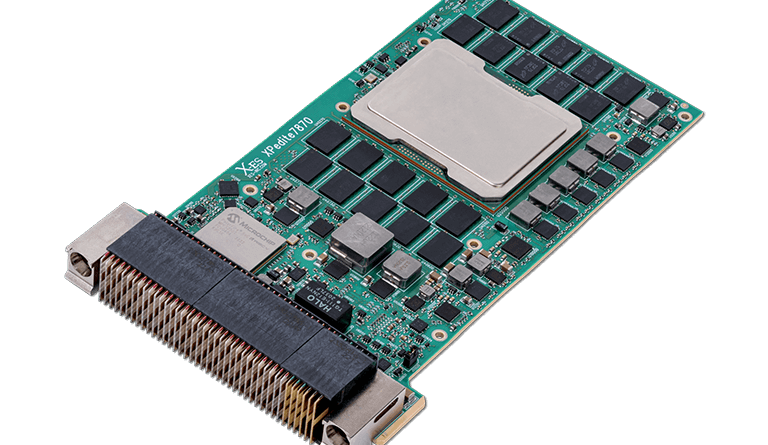

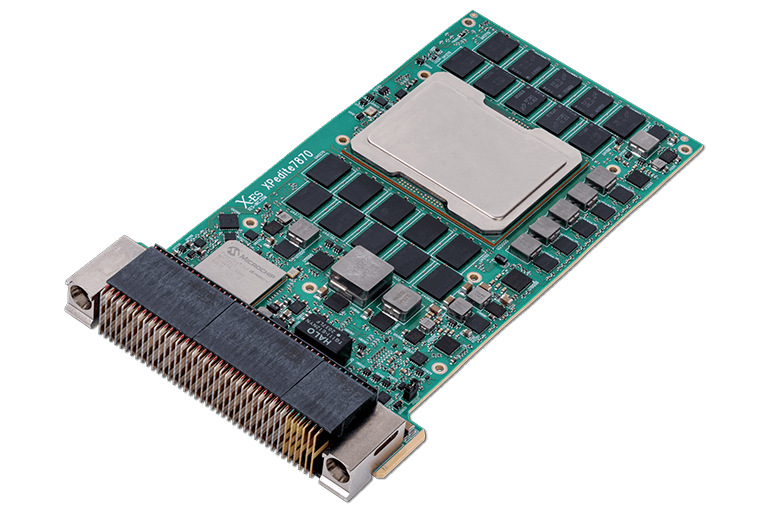

XPedite7870 Intel® Xeon® D-2800 Processor-Based 3U VPX-REDI Module with 64 GB of DDR4, 100 Gigabit Ethernet, and SecureCOTS™

The XPedite7870 is a secure, high-performance single-board computer based on the Intel Xeon D-2800 series (formerly Eddy Lake) of processors, making it an optimal choice for computationally intensive applications that require maximum data and information protection.

This 3U VPX-REDI module integrates SecureCOTS technology with a Microsemi PolarFire System-on-Chip (SoC) FPGA, enabling the hosting of custom functions to protect data from modification or observation. It provides an ideal solution when stringent security capabilities are required.

The XPedite7870 is a secure, high-performance single-board computer based on the Intel Xeon D-2800 series (formerly Eddy Lake) of processors, making it an optimal choice for computationally intensive applications that require maximum data and information protection.

This 3U VPX-REDI module integrates SecureCOTS technology with a Microsemi PolarFire System-on-Chip (SoC) FPGA, enabling the hosting of custom functions to protect data from modification or observation. It provides an ideal solution when stringent security capabilities are required.

The XPedite7870 provides incredible speed with two 100GBASE-KR4 and one 10/100/1000BASE-T Ethernet port. The dual 100GBASE-KR4 Ethernet ports provide fallback redundancy to ensure a consistent processor throughput of up to 100 Gbps is maintained at all times. The XPedite7870 also accommodates up to 64 GB of DDR4 ECC SDRAM in four channels and up to 256 GB of onboard NAND flash in addition to numerous I/O ports, including USB 2.0, PCI Express, and RS-232/422/485 serial through the backplane connectors.

Wind River VxWorks and X-ES Enterprise Linux (XEL) Board Support Packages (BSPs) are available.
