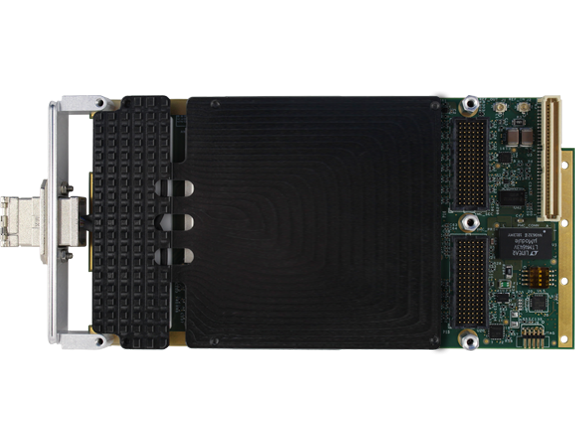

V1161 Programmable 100G Ethernet XMC ACAP Card

The V1161 is a next-generation high performance embedded computing XMC featuring the Xilinx® Versal™ Adaptive Compute Acceleration Platform (ACAP), the NVIDIA® Mellanox® ConnectX®-5 (MC-X5) network interface device, and rugged optical and electrical IO options. The V1161 is specifically targeted at applications requiring a combination of high-speed interfaces, network offloads, and onboard payload processing resources. Use cases include sensor interface design with on-board data processing (or pre-processing), multi-level secure networking, and protocol bridging applications. Radar, SIGINT, video, storage, medical imaging, and embedded communications systems all can benefit from the V1161 module.

The V1161 is a proven high-bandwidth and low-latency performance leader in 10/25/40/100Gbs Ethernet applications. The V1161 includes hardware offloads for UDP, TCP, RoCE v2, DPDK, GPUDirect, NVMEoF, and many other protocol stacks. The combination of the MC-X5 device and the ACAP device allows for system designers to leverage the off-the-shelf world-class Ethernet performance while deploying unique data processing and security algorithms in the onboard ACAP device. This combination maximizes the effectiveness of the deployed algorithms while eliminating design efforts required to establish high bandwidth Ethernet, PCIe controllers, efficient DMA engines, or low overhead software drivers.

In addition to the Ethernet interfaces described, the FPGA fabric provided within the ACAP part is capable of hosting New Wave DV IP cores for Fibre Channel, ARINC-818, sFPDP, Aurora, and others. This makes the V1161 an ideal hardware platform for mixed interface protocol needs or protocol bridging applications.

The convenient XMC form factor and rugged design of the V1161 can turn a VPX-based single-board computer into a single-slot sensor interface and heterogeneous computing solution. The V1161 mounted on an x86 based single board computer will provide 100G optical interfaces, FPGA fabric, ARM processor cores, and x86 processor cores all in a single slot solution. V1161 is also available from New Wave DV in a 3U VPX form-factor instead of XMC if desired.


  • Up to eight (8) 1G to 25G optical ports via MPO front panel I/O or VITA 66 optical backplane I/O. Electrical I/O via Pn6 is also available.
  • Xilinx® Versal® ACAP (FPGA)
  • NVIDIA® Mellanox® ConnectX®-5 Network Interface Device
  • Hardware offloads for UDP, TCP, RoCE v2, DPDK, GPUDirect, NVMEoF, +more
  • Supports PCIe Gen4 x16, Gen4 x8, Gen3 x16, Gen3 x8
  • Onboard embedded PCIe Switch device
  • Advanced APIs that support multi-core and multi-processor architectures
  • Wide range of operating system software support
