6.5-inch VGA display expands Tianma P-series line-up from RDS

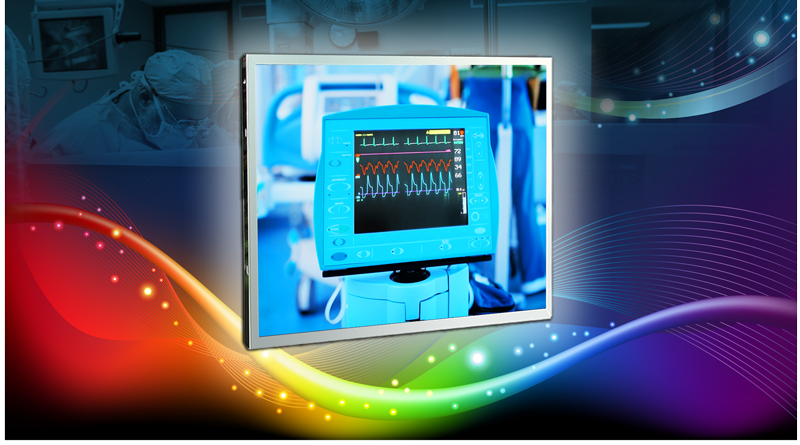

Display solutions and embedded systems provider, Review Display Systems (RDS) have announced the availability of a new Tianma 6.5-inch TFT display module. The P0650VGF1MA00 features SFT (Super Fine TFT) technology which ensures exceptional optical performance, a 4:3 classic aspect ratio, and VGA (640 x 480 pixels) resolution. Tianma P-series displays are designed to provide reliable and consistent operation when subjected to temperature extremes, vibration, and mechanical shock in challenging operating environments.

Wide viewing angle performance, consistent color performance, and brightness are key features of the P0650VGF1MA00 with Tianma’s implementation of SFT technology. Wide viewing angles of 85 degrees are supported in all directions (up/down, left/right). The white LED backlight has a 100K hour half-brightness lifetime and provides a 1200cd/m² brightness specification. A contrast ratio of 900:1 ensures that display images are bright, concise, and uniform.

Justin Coleman, display division manager, RDS said, “The new 6.5-inch P-series display should prove to be a popular addition to the Tianma display portfolio. The compact size, resolution, and aspect ratio of the display combined with the excellent optical characteristics, deliver a highly versatile display module that will find use in many different applications and environments.”

The P0650VGF1MA00 features a single-channel 20-pin LVDS data interface that supports a configurable 6-bit or 8-bit RGB data which enables a color palette of up to 262K or 16.7M colors. The 6.5-inch display module has mechanical outline dimensions of 154.0mm (w) x 121.0mm (h) x 7.1mm (d) and an active display area of 132.5mm (w) x 99.4mm (h).

The Tianma 6.5″ TFT has been designed to function reliably under rigorous operating conditions found in many industrial, marine, aerospace, and medical applications yet still provide exceptional optical performance. Support for operation in harsh environments is aided with an extended temperature range of -30°C to +80°C.

Typical applications for the new 6.5-inch Rugged+ display include medical devices, marine instrumentation, industrial process control, factory automation, and in-vehicle systems. The Tianma 6.5-inch P-series P0650VGF1MA00 TFT display module is now available for value-add and non-distribution sales only from Review Display Systems.
