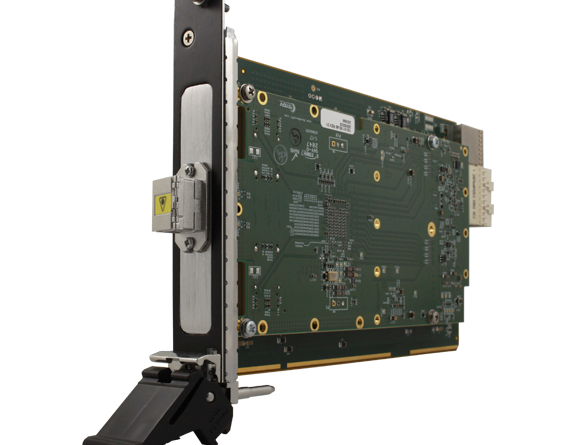

V1163 12-Port Rugged XMC ACAP Card from New Wave DV

The V1163 is a powerful heterogeneous computing XMC with high bandwidth IO featuring the Xilinx® Versal™ Adaptive Compute Acceleration Platform (ACAP) and rugged optical and electrical IO. The V1163 provides options for Versal Prime or Versal AI Core part selection. In a single mezzanine card, the V1163 provides 100G optical interfaces, FPGA fabric, ARM processor cores, and optional AI engines. The V1163 is designed for applications requiring any combination of the following: high-speed optical/electrical interfaces, FPGA processing resources, ARM processing cores, and AI engines. Use cases include sensor interface design, digital signal processing, video processing, application co-processing, and multi-level secure networking. Radar, SIGINT, video, storage, medical imaging, and embedded communications systems all can benefit from the V1163 module.

The V1163 provides electrical and optical IO options supporting 10/25/40/50/100Gbs Ethernet. By leveraging the Versal hard silicon Ethernet interfaces, PCIe controllers, DMA engines, and associated software drivers Xilinx® has enabled a robust ecosystem for high-bandwidth Ethernet performance. In addition to the Ethernet interfaces described, the FPGA fabric provided within the ACAP part is capable of hosting New Wave DV IP cores for Fibre Channel, ARINC-818, sFPDP, Aurora, and others. This makes the V1163 an ideal hardware platform for mixed interface protocol needs or protocol bridging applications.

The convenient XMC form factor and rugged design of the V1163 can turn a VPX-based single-board computer into a single-slot sensor interface and heterogeneous computing solution. The V1163 mounted on an x86-based single board computer will provide 100G optical interfaces, FPGA fabric, ARM processor cores, AI Engines, and x86 processor cores all in a single slot solution. V1163 is also available from New Wave DV in a 3U VPX form-factor instead of XMC if desired.
