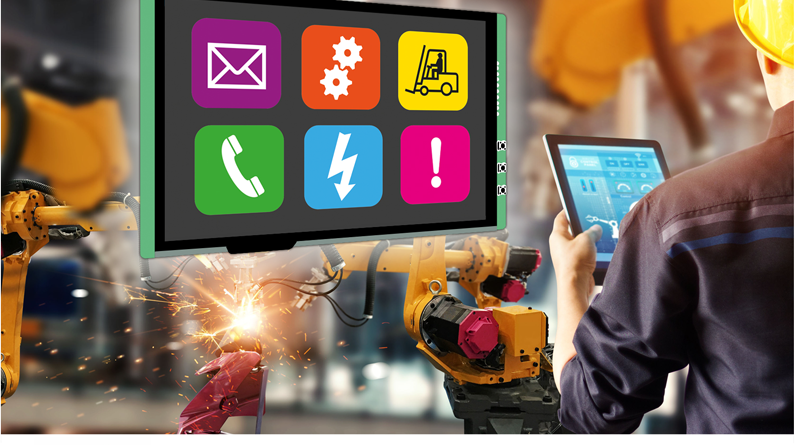

Fully integrated, intelligent TFT display module

Display solutions and embedded systems provider, Review Display Systems (RDS) has announced the availability of a fully integrated, intelligent display module. The DMG10600T101-33WTC uses a Rockchip RK3288 ARM-based System on Chip (SoC), featuring a 32-bit Cortex A-17 core running an Android operating system.

The DMG10600T101-33WTC intelligent display module features a 10.1-inch IPS TFT LCD with WSVGA resolution (1024 x 600 pixels) and a brightness specification of 310cd/m². 24-bit RGB data supports a color palette of up to 16.7M colors. A fully integrated PCap (projected capacitive) touchscreen enables ease of use when implementing a graphical user interface.

A host of integrated interfaces and peripheral connections include two RS232 serial ports, one RS485 serial port to connect and communicate with external devices, an ethernet 10/100Mbps interface, three USB interfaces, a SIM card slot, and a 4G module slot. On board, the memory includes 8GB of flash memory and 2GB DDR3 RAM with an SD card expansion slot supporting up to 64GBytes (maximum).

Justin Coleman, display business manager, at RDS said, “The intelligent display module provides a highly versatile, configurable module that offers a wealth of standard integrated features and functionality. These features coupled with the ability to uniquely configure and customize with standard ‘off-the-shelf’ Android apps or user-developed APK files enable an application or user-specific hardware to be simply and easily created.”

Additional on-board functionality includes Wi-Fi IEEE 802.11Bb/g/n 2.4Ghz, Bluetooth connectivity, an HDMI interface, a MIPI/USB camera interface, a microphone interface, a 3.5mm headphone socket, and a dual left/right speaker interface.

The intelligent display module currently supports the Android 8.1 operating system. Additional Android apps and APK files can be downloaded to enhance functionality and configure the intelligent display module for application-specific tasks. This enables the device to be uniquely configured and customized for specialized customer requirements.

The intelligent display module has mechanical outline dimensions of 257.0mm (l) x 148.1mm (w) x 23.2mm (h), with the 10.1-inch display providing an active display area of 222.72mm (w) x 125.28mm (h).  A Linux-based operating system version of the intelligent display module is also available.
